Overhead Switchgear Innovations to Enhance Grid Reliability

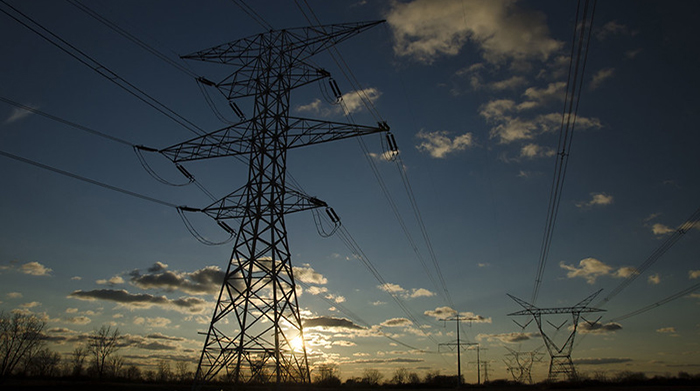

Image courtesy of Michael Kappel under Attribution-NonCommercial 2.0 Generic Deed, resized to 700 x 391 pixels.
Deploying advanced overhead switchgear technologies can bolster reliability of the sub-transmission grid, the vital link between high-voltage transmission lines and lower-voltage distribution networks. Not only that, but they can also help reduce opex costs and streamline the integration of renewable energy sources. For today’s blog post, I thought I’d do a bit of a deep dive on this concept.
Examples of Recent Advancements in Overhead Switchgear
One significant advancement is the development of so-called intelligent circuit breakers, which incorporate advanced sensor technology and communication capabilities. Unlike traditional breakers, smart breakers can remotely monitor system conditions, predict potential faults based on subtle changes in voltage or current, and even isolate problematic sections proactively. This predictive maintenance capability significantly reduces unplanned outages and the associated repair costs. In addition, their integrated diagnostic tools provide real-time data, allowing utilities to optimize maintenance schedules and extend equipment lifespan.
Another key innovation is the development of advanced disconnect switches (fuses and cutouts). Modern designs offer enhanced arc quenching capabilities, reducing wear and tear and increasing operational lifespan. Some advanced designs embed remote operation and monitoring, allowing for faster response during fault conditions and reducing the need for extensive manual inspections in difficult-to-access locations. This translates to quicker restoration times and lower labor costs.
The integration of advanced materials and coatings in overhead switchgear components also plays a crucial role. Corrosion-resistant alloys and specialized coatings provide superior durability against harsh environmental conditions like salt spray, pollution, and extreme temperatures. This reduces the frequency of replacements and costly corrosion-related failures, thereby extending the operational life of the switchgear and improving overall grid reliability in challenging terrains.
Finally, the adoption of modular and compact switchgear designs presents a cost-effective solution. These designs simplify installation and reduce the physical footprint required, leading to lower civil works costs. Their modular nature also facilitates easier upgrades and replacements, allowing utilities to adapt to evolving grid demands without undertaking massive overhauls.
The bottom line is that by embracing these overhead switchgear innovations, utilities can cost-effectively bolster the reliability of their sub-transmission grids, ensuring a more stable and resilient power supply for consumers.
